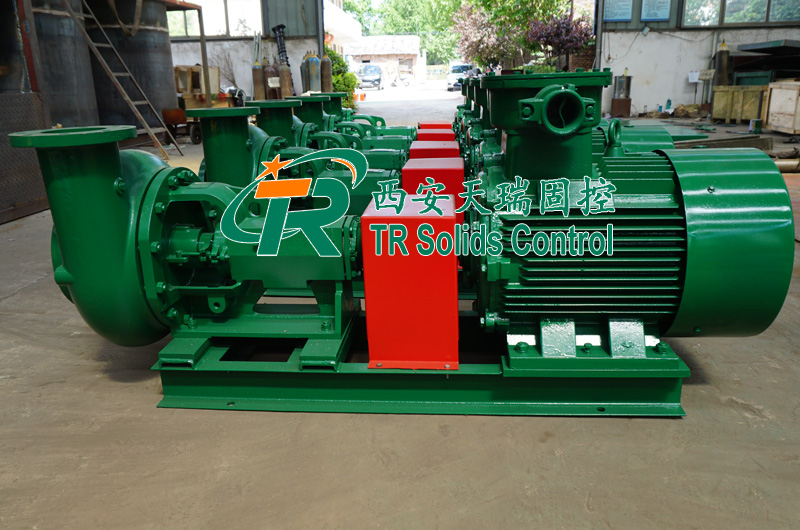

Mission Type Centrifugal Pump Shaft / Green Paint Mission Pump Spare Parts
Product Introduction
Centrifugal pump is an important equipment used in drilling solids control system. It provides drilling fluid to other equipment by its suction and pumping out function. It could achieve transferring of drilling fluids. Its main working principle is the centrifuging power coming from rotating impeller.
TR centrifugal pump is used to transport fluid by conversion of rotational kinetic energy to the hydraulic energy of the fluids flow. The rotational energy typically comes from an engine or electric motor. TR supply pumps driven by 10HP to 100HP, which are popular in drilling mud process. Pumps size are 3x2, 4x3, 5x4, 6x5, 8x6. They will perform differently under different voltage, power, or frequency.
Features of TRLSB Series drilling centrifugal Pump:
- No block: open impeller design.
- Beautiful appearance: overall structure is vertical with small floor area.
- High efficiency: impeller and pump casing flow path adopt the best leisure design.
- Long life: impeller and pump casing flow path are optimized for streamline design.
- No leakage: composite seals with main mechanical seals and auxiliary packing seals. Mechanical seals are made of hard alloys and their service life is 5 times that of ordinary seals.
Main Specification of TRSB Series Drilling Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
