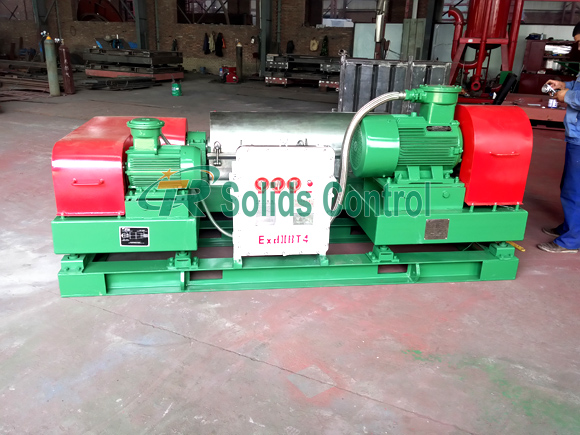

High Efficiency Drilling Mud Decanter Centrifuge , Oil Drilling Mud Centrifuge
Introduction
Decanter centrifuge is the fourth solid control facility in processing drilling fluid. Our mud decanting centrifuge can recycle the barite. It's important by cleaning out the small particle(2μm-7μm) from the drilling fluids to control fluids density and viscosity and improve the efficiency of well drilling.
TR Decanter Centrifuge can meet with different requirements of mud treatment under various drilling conditions. As a famous manufacturer of decanter centrifuge manufacturer in China, our centrifuge has good price and high quality. Furthermore, we have other solid control equipment like shale shaker, mud cleaner, mud agitator, centrifugal pump, shear pump, jet mud mixer, mud gas separator etc.
Main Benefits of Our Drilling Decanter Centrifuge
- Drum assembly is protected with demountable support frame in transit, preventing damage to bearing;
- Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process;
- Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement;
- Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
- Using imported SKF and NSK bearings to improve equipment stability and bearing life;
- Remaining components of the drum assembly are made from SS316L;
- Frequency control facilitates customers to adjust speed at any time, meeting different working conditions;
- Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
Specification of TRLW Series Decanting Centrifuge
| Model | TRLW600B-1 | TRLW450N-1 | TRLW450N-2 | TRLW355N-1 | TRLW355NB-1 |
| Bowl Diameter | 600mm | 450mm | 450mm | 355mm | 355mm |
| Bowl Length | 1500mm | 1000mm | 1250mm | 1250mm | 1250mm |
| Bowl Speed | 2200r/min | 2200r/min | 3200r/min | 3200r/min | 0~3200r/min |
| Max Capacity | 90m³/h | 50m³/h | 50m³/h | 40m³/h | 40m³/h |
| G-Force | 815 | 815 | 2035 | 2035 | 0~2035 |
| Separation point | 5~7μm | 5~7μm | 5~7μm | 2~5μm | 2~7μm |
| Gear Box Speed | 40r/min | 40r/min | 30r/min | 30r/min | 0~3030r/min |
| Gear Box Ratio | 35:1 | 57:1 |
| Main Motor Power | 55kw | 30kw | 37kw | 30kw | 37kw |
| Auxiliary Motor Power | 15kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| EX Standard | ExdIIBt4/IECEX/A-TEX |
| Weight | 4800kg | 2700kg | 3200kg | 2900kg | 3200kg |
| Dimension | 2900*1900 *1750mm | 2600*1860 *1750mm | 2600*1860 *1750mm | 2600*1620 *1750mm | 2600*1620 1750mm |
(Note: Rotary speed can be adjustable as per user's requirements)
Application
TRLW series drilling decanter centrifuge is widely used in trenchless HDD, oil & gas drilling, Drilling Waste Management, tunneling construction, environment protection, Oil Mud Seperation, mining, chemical Industry, food industry, Coal Bed Gas Solids Control System, Pharmaceutical Industry, Oil Sludge Dewatering Systems etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
