API Oilfield Drilling Cementing Casing Pipe Float Collar and Float Shoe
Product Description
The cement float collar & shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
Float Collar:
Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the or mast.
Float Shoe:

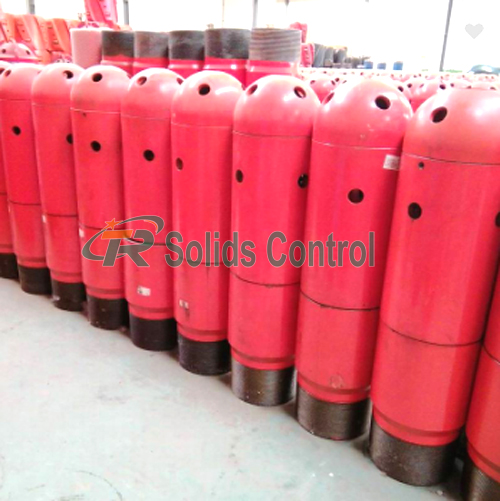

Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.
Design Features of Our Float Collar & Float Shoe:
- All inner parts are made of easily drillable aluminum alloy.
- The device can be connected directly to same type casing.
- Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
- Valve seat and valve disk can effectively prevent grout from flowing back.
- Hardness of base material is equivalent to API Spec N-80.
- API spec.Q1 and ISO9000 certification.
Main Parameters of TR Casing Float Collar & Float Shoe
| Specification(in) | O.D.(mm) | Total length(mm) | I.D.(mm) | Min.Dia.(mm) | Conn Type | Affordable strength of back-pressure(Mpa) |
| Float Collar | 5 | 141.30 | 500 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 |
| 7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 |
| 9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 |
| 13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 |
| 20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 |
| Float Shoe | 5 | 140.30 | 495 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 |
| 7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 |
| 9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 |
| 13 3/8 | 339.7 | 550 | 319 | 77 | 133/8 BCSG | 35 |
| 20 | 534 | 652 | 475 | 77 | 20 BCSG | 35 |
We are specialized in oilfield equipment and accessories including casing centralizers, float equipment, stage collars, cementing plugs, cementing heads, cement baskets, casing & tubing pipes, sucker rods, drill pipes, drill collars, pumping units, etc.
We are committed to providing high-quality and cost-effective products and services to our customers.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
