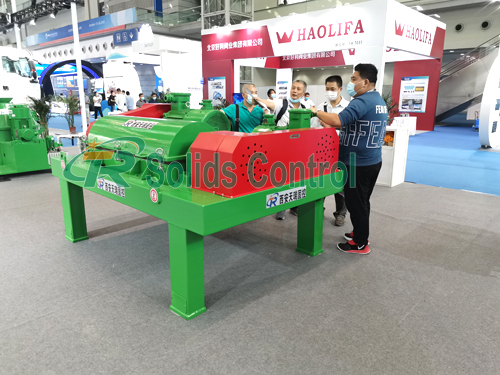

Oil Sludge Decanter Centrifuge Material Carbon Steel
Main Introduction
TRLW series decanter centrifuge uses solid-liquid density difference to form two-phase separation under the function of centrifugal force. It’s mainly for the recovery of barite, removing fine solids and reducing the solids content of drilling fluid, controlling the density and viscosity of the drilling fluid, ensuring the performance of the drilling fluid, and having an important role in rapid drilling.
On the small end circle of the bowl, there are two rows of staggered 28 tungsten carbide nozzles, which separates solid phased particles within the bowl under effect of the centrifuge discharged here. Among inner surface of cylinder rods can form a solid phase layer due to the effect of rod. This stops the circular motion of solid layer, thus protecting bowl inner wall from wearing. Bowl cover is composed of box cover and lower box, connected with hinges. Lower box is divided into two separate chambers with baffle, by the big end side of chamber to collect liquids phase from overflow opening. We welcome your inquiry of our decanter centrifuge!
Working Principle
The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference: The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum: Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer: The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.
Basic Features of TRLW Series Decanter Centrifuge
- Electrical Component: Siemens and Schneider.
- Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
- Bearing :Germany FAG or Sweden SKF.
- Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
- Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.
Technical Specifications of High Speed Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
TR Solids Control can supply and design complete solids control system for oil and gas drilling projects all over the world. With complete five phrase purification equipment, shale shaker, vacuum degasser, desander, desilter, decanting centrifuge etc. Our
solids control system ensures good and efficient treatment effects of removing solids particles and gas bubbles in oil and gas drilling fluids. We design and make detail technical drawing of the system customized according to clients’ special requirements and drilling site application.
Our Services
1. We are a professional and well-know manufacturer of decanter centrifuge with more than 10 years experience.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

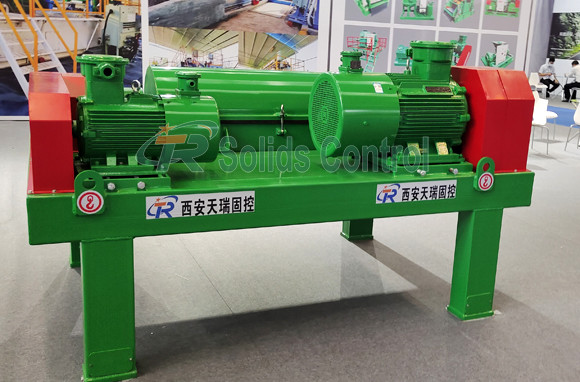

30kw Carbon Steel Oil Sludge Decanter Centrifuge Images
|
