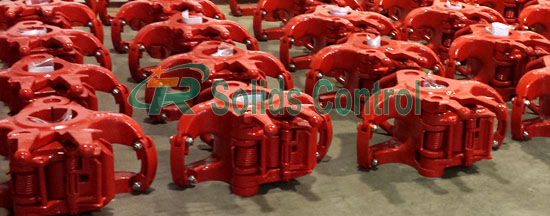

DDZ TD Center Latch Drill Pipe Elevator For Oilfield
Product Introduction
Drill pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.
"G" type drill pipe elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. ZX "G" type drill pipe elevators are conventional center latch taper type elevators for handling drill pipe.
There are eight types ranging from 100 to750 ton capacity and covering pipe sizes from 2-3/8'' to 6-5/8" OD. A modified G type elevator uses a special wear bushing for use with Top Drive Systems.
.
Our Service
As the distributor, we are working with large rig companies and heavy equipment manufacturers for the below products:
- -Rig parts from RG,BOMCO,SJ,Hong Hua,KR etc,such as mud pump,rotary table, hook & block, swivel, crown block and consumable parts.
- - BOP and wellhead parts from Rongsheng,Shenkai.
- - Pipe- Tubing, Casing, seamless pipe.
- -Handling tools and Fishing tools.
- -Solid control equipment: shale shaker, mud cleaner, decanter centrifuge etc.
Product Specifications of Our DDZ Type Elevator
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load |
| In | mm | mm | In | kN(Tons) |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 | 100(900) 150(1350) 200(1800) 250(2250) 350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 |
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 |
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 |
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 |
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 |
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 |
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 |
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 |
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU | 150(1350) 250(2250) 350(3150) |
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU |
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU |
| DDZ109 | 4IU | 109 | 4IU |
| DDZ121 | 4 EU | 121 | 4 EU |
| 4 1/2IU | 4 1/2IU |
| 4 1/2IEU | 4 1/2IEU |
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU |
| 5IEU | 5IEU |
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU |
Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
